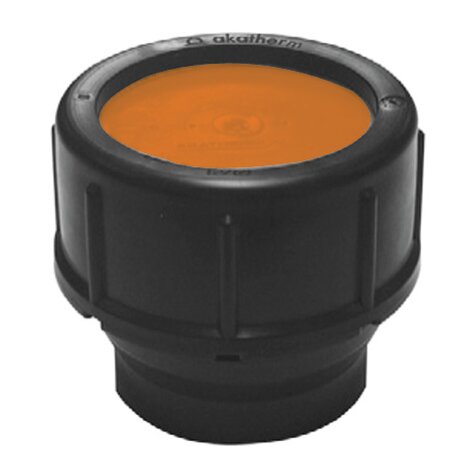

Screw coupler short
Complete with threaded piece, nut, pressure ring and sealing ring
Butt-weld only

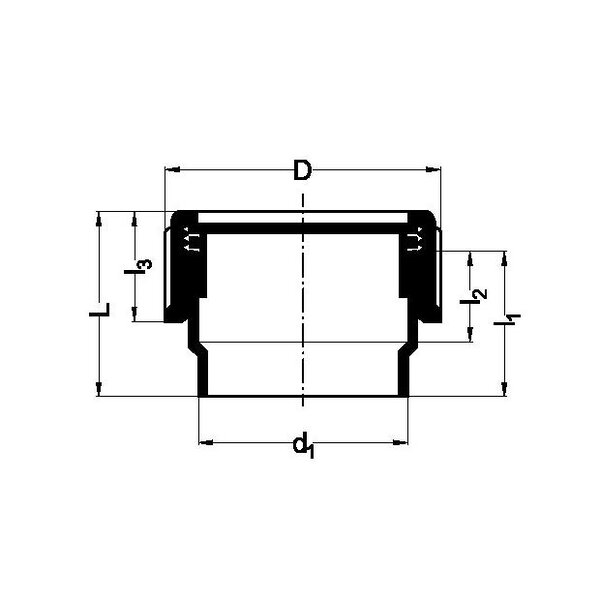

| Référence | Nom | info-bulle | d1 | Kg | D | L | l2 | l3 | Catégorie | Sous-catégorie |
|---|---|---|---|---|---|---|---|---|---|---|
| Screw coupler shortComplete with threaded piece, nut, pressure ring and sealing ring | /pim/akatherm-hdpe/43XX30-Model.jpg | 40 | 0,072 | 66 | 71 | 32 | 33 | Raccords de connexion | Coupleurs à vis | |
| Screw coupler shortComplete with threaded piece, nut, pressure ring and sealing ring | /pim/akatherm-hdpe/43XX30-Model.jpg | 50 | 0,078 | 76 | 71 | 32 | 33 | Raccords de connexion | Coupleurs à vis | |
| Screw coupler shortComplete with threaded piece, nut, pressure ring and sealing ring | /pim/akatherm-hdpe/43XX30-Model.jpg | 63 | 0,104 | 89 | 76 | 37 | 42 | Raccords de connexion | Coupleurs à vis | |
| Screw coupler shortComplete with threaded piece, nut, pressure ring and sealing ring | /pim/akatherm-hdpe/43XX30-Model.jpg | 75 | 0,15 | 103 | 81 | 37 | 44 | Raccords de connexion | Coupleurs à vis | |
| Screw coupler shortComplete with threaded piece, nut, pressure ring and sealing ring | /pim/akatherm-hdpe/43XX30-Model.jpg | 90 | 0,24 | 122 | 92 | 45 | 48 | Raccords de connexion | Coupleurs à vis | |
| Screw coupler shortComplete with threaded piece, nut, pressure ring and sealing ring | /pim/akatherm-hdpe/43XX30-Model.jpg | 110 | 0,392 | 148 | 97 | 49 | 62 | Raccords de connexion | Coupleurs à vis | |
| Screw coupler shortComplete with threaded piece, nut, pressure ring and sealing ring | /pim/akatherm-hdpe/43XX30-Model.jpg | 56 | 0,092 | 82 | 71 | 32 | 35 | Raccords de connexion | Coupleurs à vis |
