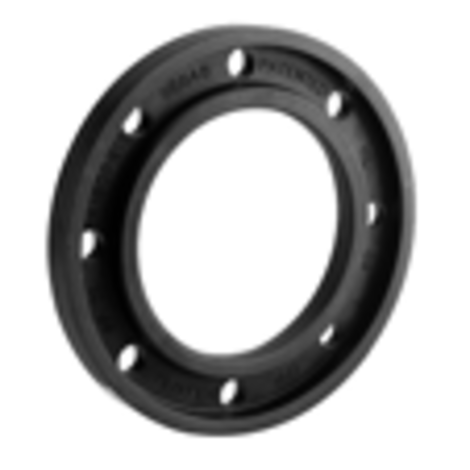

Profile backing ring PP with ductile iron core

Profile backing rings with ductile iron core are suitable for non-pressure applications.

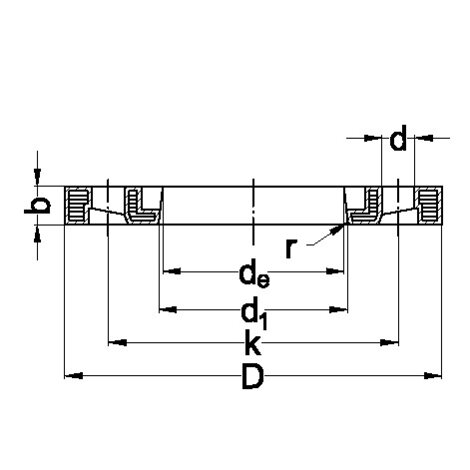

n = number of bolts
M = thread
* DIN 2501 PN10

Référence	Nom	info-bulle	Prix	Système de verrouillage	d₁/	q	b	Kg	D	C	Catégorie	Sous-catégorie	DN	M	St	d*	n*	r
470409010	Profile backing ring PP with ductile iron core	-	11,70	TP	40	20	17	0,57	142	51	Raccords de connexion	Joints à brides	32	M16	100	18	4	3
470509010	Profile backing ring PP with ductile iron core	-	13,66	TP	50	16	19	0,8	156	62	Raccords de connexion	Joints à brides	40	M16	110	18	4	3
470609010	Profile backing ring PP with ductile iron core	-	16,98	TP	63	16	20	0,93	171	78	Raccords de connexion	Joints à brides	50	M16	125	18	4	3
470709010	Profile backing ring PP with ductile iron core	-	18,81	TP	75	12	21	1,22	191	92	Raccords de connexion	Joints à brides	65	M16	145	18	4	3
470909010	Profile backing ring PP with ductile iron core	-	22,38	TP	90	10	21	1,18	206	108	Raccords de connexion	Joints à brides	80	M16	160	18	8	3
471109010	Profile backing ring PP with ductile iron core	-	27,02	TP	110	10	22	1,54	226	128	Raccords de connexion	Joints à brides	100	M16	180	18	8	3
471209010	Profile backing ring PP with ductile iron core	-	27,02	TP	125	10	23	1,43	226	135	Raccords de connexion	Joints à brides	100	M16	180	18	8	3
471609010	Profile backing ring PP with ductile iron core	-	47,70	TP	160	6	28	2,47	296	178	Raccords de connexion	Joints à brides	150	M20	240	22	8	3
472009010	Profile backing ring PP with ductile iron core	-	67,99	TP	200	1	32	3,63	350	235	Raccords de connexion	Joints à brides	200	M20	295	22	8	4
472509010	Profile backing ring PP with ductile iron core	-	99,03	TP	250	1	36	5,31	412	288	Raccords de connexion	Joints à brides	250	M20	350	22	12	4
473109010	Profile backing ring PP with ductile iron core	-	136,35	TP	315	1	42	7,32	462	338	Raccords de connexion	Joints à brides	300	M20	400	22	12	4
