Expansion socket with anchor point
With protection plug

1 sealing ring

The expansion sockets can absorb length changes of pipes with a max. length of 6 m. A temperature difference of 10°C will result in expansion or contraction of 8 mm. The insertion depths at ambient temperature of 0°C and 20°C are indicated on the sockets.

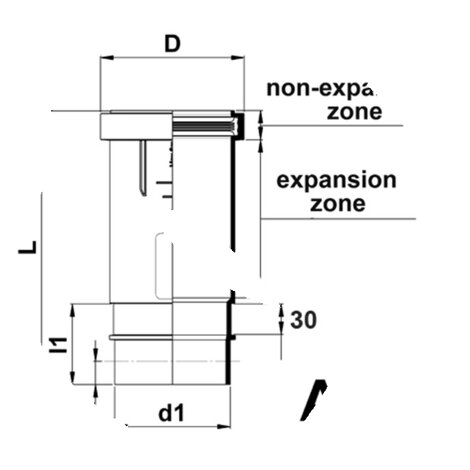

Expansion sockets d75-315 mm of type A have an integrated anchor point, that is able to incorporate extension of the 5 meter down pipe.

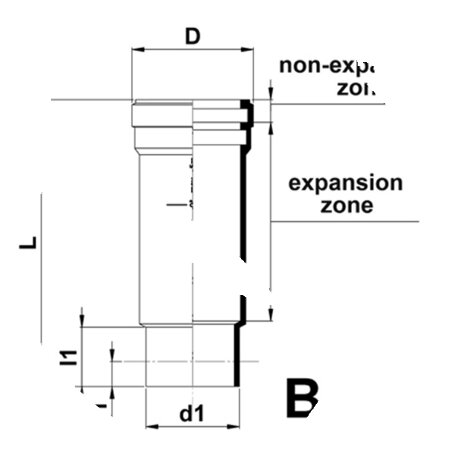

Référence	Nom	info-bulle	d1	b	Type	D	L	l1	Catégorie	Sous-catégorie	k1	product.detail.attribute.nonExpansionZone	product.detail.attribute.expansionZone
400420	Expansion socket with anchor pointWith protection plug	-	40	-	B	56	172	35	Raccords de connexion	Joints enfichables	-	25	109
400520	Expansion socket with anchor pointWith protection plug	-	50	-	B	65	172	35	Raccords de connexion	Joints enfichables	-	25	109
400620	Expansion socket with anchor pointWith protection plug	-	63	-	B	80	155	15	Raccords de connexion	Joints enfichables	-	25	114
402020	Expansion socket with anchor pointWith protection plug	-	200	-	B	240	300	55	Raccords de connexion	Joints enfichables	-	45	200
402520	Expansion socket with anchor pointWith protection plug	-	250	-	B	298	300	55	Raccords de connexion	Joints enfichables	-	45	205
403120	Expansion socket with anchor pointWith protection plug	-	315	-	B	372	355	68	Raccords de connexion	Joints enfichables	-	55	225
405620	Expansion socket with anchor pointWith protection plug	-	56	-	B	72	172	35	Raccords de connexion	Joints enfichables	-	25	109
420720	Expansion socket with anchor pointWith protection plug	-	75	30	A	98	255	72	Raccords de connexion	Joints enfichables	30	32	148
420920	Expansion socket with anchor pointWith protection plug	-	90	30	A	114	255	72	Raccords de connexion	Joints enfichables	30	32	148
421120	Expansion socket with anchor pointWith protection plug	-	110	30	A	135	260	76	Raccords de connexion	Joints enfichables	35	35	145
421220	Expansion socket with anchor pointWith protection plug	-	125	30	A	152	260	76	Raccords de connexion	Joints enfichables	35	38	142
421620	Expansion socket with anchor pointWith protection plug	-	160	30	A	186	266	76	Raccords de connexion	Joints enfichables	35	41	148
422020	Expansion socket with anchor pointWith protection plug	-	200	30	A	240	435	180	Raccords de connexion	Joints enfichables	50	45	200
422520	Expansion socket with anchor pointWith protection plug	-	250	40	A	298	460	200	Raccords de connexion	Joints enfichables	100	55	205
423120	Expansion socket with anchor pointWith protection plug	-	315	40	A	372	495	235	Raccords de connexion	Joints enfichables	-	55	205
