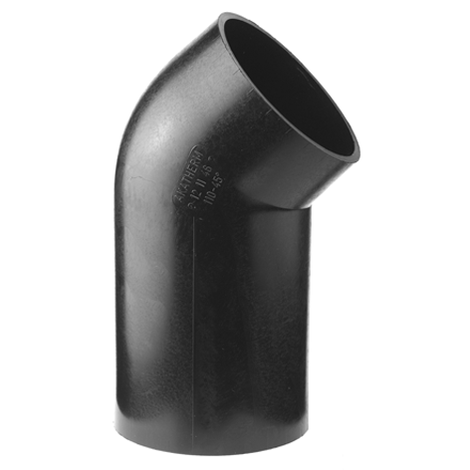

Elbow 45° with long side

Elbows 45° with long side are applied for making the transition from stack to building drain acc. to EN 12056 (see drawing).

1 stack
2 building drain

Elbow 45° with long side
Elbow 45° with long side
Elbow 45° with long side
Elbow 45° with long side

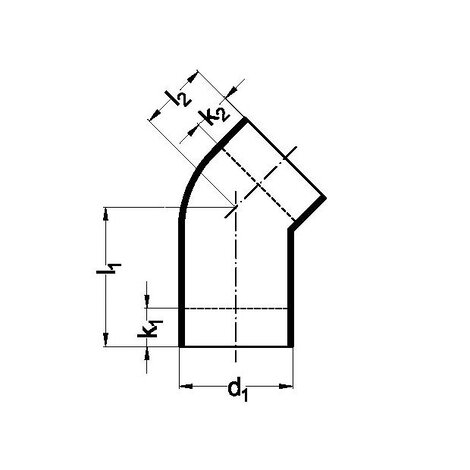

Référence Nom info-bulle d1 l1 l2 Catégorie Sous-catégorie
120746 Elbow 45° with long side - 75 145 50 Raccords Courbes
120946 Elbow 45° with long side - 90 150 55 Raccords Courbes
121146 Elbow 45° with long side - 110 147 60 Raccords Courbes
