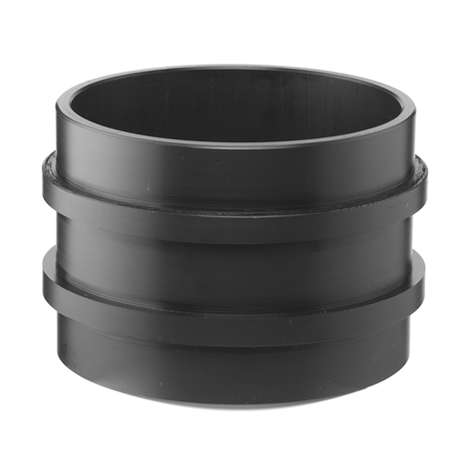

Double-flange bushing
Double-flange bushings are suitable for anchor joints.
| Référence | Nom | info-bulle | Kg | D | L | l1 | l2 | Catégorie | Sous-catégorie |
|---|---|---|---|---|---|---|---|---|---|
| 43 11 15 | Double-flange bushing | - | - | 118 | 80 | 17 | 31 | Raccords de connexion | Transition vers un autre matériel |
| 43 12 15 | Double-flange bushing | - | - | 133 | 80 | 17 | 31 | Raccords de connexion | Transition vers un autre matériel |
| 43 16 15 | Double-flange bushing | - | - | 170 | 91 | 25 | 31 | Raccords de connexion | Transition vers un autre matériel |
| 43 20 15 | Double-flange bushing | - | - | 216 | 141 | 35 | 41 | Raccords de connexion | Transition vers un autre matériel |
| 43 25 15 | Double-flange bushing | - | - | 262 | 201 | 60 | 41 | Raccords de connexion | Transition vers un autre matériel |
| 43 31 15 | Double-flange bushing | - | - | 327 | 201 | 60 | 41 | Raccords de connexion | Transition vers un autre matériel |
