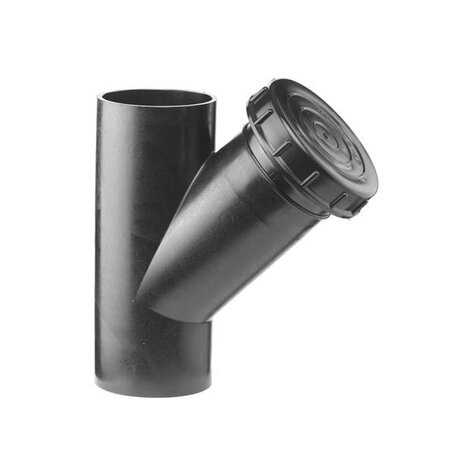

Clean out branch 45°

Clean out branches 45° can be applied in horizontal and vertical pipes.
Clean out branch 45°
Clean out branch 45°
Clean out branch 45°
Clean out branch 45°

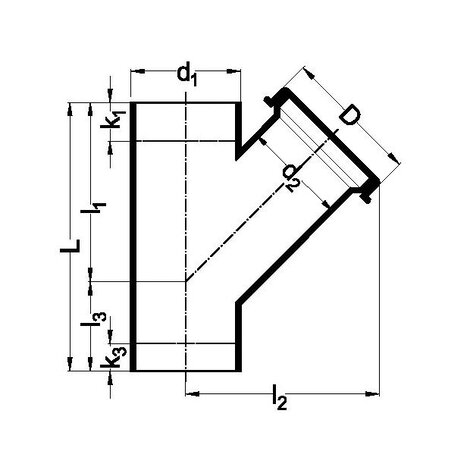

Référence Nom info-bulle d1/ d2 Kg D L l1 l2 l3 Catégorie Sous-catégorie k3
331100 Clean out branch 45° - 110 110 0,763 140 270 180 195 90 Raccords Branches 55
331200 Clean out branch 45° - 125 110 0,92 140 300 200 200 100 Raccords Branches 25
331600 Clean out branch 45° - 160 110 1,543 140 375 250 220 125 Raccords Branches 45
