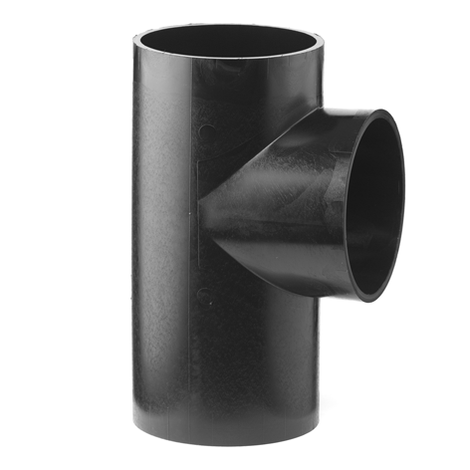

Branch 88,5°

Branch 88,5°
Branch 88,5°
Branch 88,5°
Branch 88,5°

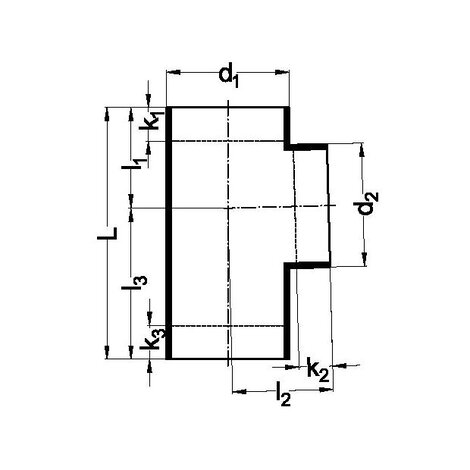

Référence Nom info-bulle d1/ d2 Kg L l3 l1/l2 Catégorie Sous-catégorie k3
200404 Branch 88,5° - 40 40 0,059 130 75 55 Raccords Branches 45
200504 Branch 88,5° - 50 40 0,081 150 90 60 Raccords Branches 60
200505 Branch 88,5° - 50 50 0,083 150 90 60 Raccords Branches 55
200604 Branch 88,5° - 63 40 0,113 175 105 70 Raccords Branches 70
200605 Branch 88,5° - 63 50 0,117 175 105 70 Raccords Branches 70
200606 Branch 88,5° - 63 63 0,12 175 105 70 Raccords Branches 60
200656 Branch 88,5° - 63 56 0,12 175 105 70 Raccords Branches 65
200704 Branch 88,5° - 75 40 0,134 175 105 70 Raccords Branches 75
200705 Branch 88,5° - 75 50 0,136 175 105 70 Raccords Branches 70
200706 Branch 88,5° - 75 63 0,138 175 105 70 Raccords Branches 60
200707 Branch 88,5° - 75 75 0,142 175 105 70 Raccords Branches 55
200756 Branch 88,5° - 75 56 0,135 175 105 70 Raccords Branches 65
200904 Branch 88,5° - 90 40 0,204 200 120 80 Raccords Branches 85
200905 Branch 88,5° - 90 50 0,211 200 120 80 Raccords Branches 85
200906 Branch 88,5° - 90 63 0,218 200 120 80 Raccords Branches 80
200907 Branch 88,5° - 90 75 0,224 200 120 80 Raccords Branches 75
200909 Branch 88,5° - 90 90 0,225 200 120 80 Raccords Branches 70
200956 Branch 88,5° - 90 56 0,22 200 120 80 Raccords Branches 85
201104 Branch 88,5° - 110 40 0,332 225 135 90 Raccords Branches 100
201105 Branch 88,5° - 110 50 0,328 225 135 90 Raccords Branches 95
201106 Branch 88,5° - 110 63 0,344 225 135 90 Raccords Branches 90
201107 Branch 88,5° - 110 75 0,34 225 135 90 Raccords Branches 85
201109 Branch 88,5° - 110 90 0,348 225 135 90 Raccords Branches 75
201111 Branch 88,5° - 110 110 0,36 225 135 90 Raccords Branches 65
201156 Branch 88,5° - 110 56 0,338 225 135 90 Raccords Branches 90
201205 Branch 88,5° - 125 50 0,5 250 150 100 Raccords Branches 110
201206 Branch 88,5° - 125 63 0,5 250 150 100 Raccords Branches 105
201207 Branch 88,5° - 125 75 0,484 250 150 100 Raccords Branches 100
201209 Branch 88,5° - 125 90 0,506 250 150 100 Raccords Branches 90
201211 Branch 88,5° - 125 110 0,498 250 150 100 Raccords Branches 80
201212 Branch 88,5° - 125 125 0,519 250 150 100 Raccords Branches 70
201256 Branch 88,5° - 125 56 0,5 250 150 100 Raccords Branches 105
201605 Branch 88,5° - 160 50 1,09 350 210 140 Raccords Branches 145
201606 Branch 88,5° - 160 63 1,07 350 210 140 Raccords Branches 140
201607 Branch 88,5° - 160 75 1,12 350 210 140 Raccords Branches 150
201609 Branch 88,5° - 160 90 1,12 350 210 140 Raccords Branches 125
201611 Branch 88,5° - 160 110 1,19 350 210 140 Raccords Branches 135
201616 Branch 88,5° - 160 160 1,218 350 210 140 Raccords Branches 105
201656 Branch 88,5° - 160 56 1,07 350 210 140 Raccords Branches 145
202007 Branch 88,5° - 200 75 1,75 360 180 180 Raccords Branches 90
202009 Branch 88,5° - 200 90 1,77 360 180 180 Raccords Branches 80
202011 Branch 88,5° - 200 110 1,8 360 180 180 Raccords Branches 70
202012 Branch 88,5° - 200 125 1,75 360 180 180 Raccords Branches 65
202016 Branch 88,5° - 200 160 1,9 360 180 180 Raccords Branches 45
202020 Branch 88,5° - 200 200 2 360 180 180 Raccords Branches 25
202511 Branch 88,5° - 250 110 2,74 440 220 220 Raccords Branches 110
202512 Branch 88,5° - 250 125 2,85 440 220 220 Raccords Branches 105
202516 Branch 88,5° - 250 160 2,95 440 220 220 Raccords Branches 85
202520 Branch 88,5° - 250 200 3,1 480 240 240 Raccords Branches 65
202525 Branch 88,5° - 250 250 3,22 480 240 240 Raccords Branches 40
203111 Branch 88,5° - 315 110 5,6 560 280 280 Raccords Branches 170
203112 Branch 88,5° - 315 125 5,7 560 280 280 Raccords Branches 165
203116 Branch 88,5° - 315 160 5,75 560 280 280 Raccords Branches 145
203120 Branch 88,5° - 315 200 5,8 560 280 280 Raccords Branches 120
203125 Branch 88,5° - 315 250 6,04 560 280 280 Raccords Branches 95
203131 Branch 88,5° - 315 315 6,8 560 280 280 Raccords Branches 70
205605 Branch 88,5° - 56 50 0,103 175 105 70 Raccords Branches 70
205656 Branch 88,5° - 56 56 0,108 175 105 70 Raccords Branches 65
