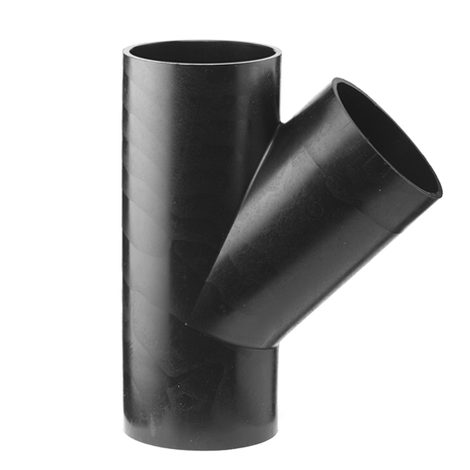

Branch 45°

Branch 45°
Branch 45°
Branch 45°
Branch 45°

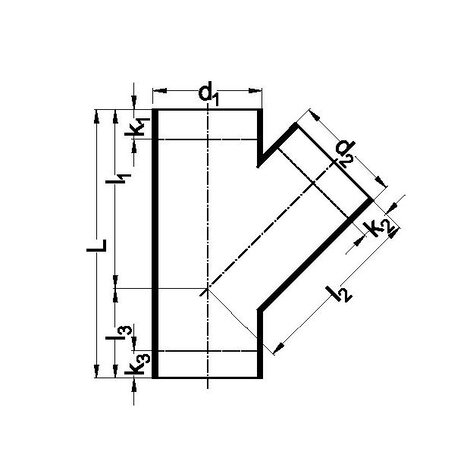

Référence Nom info-bulle d1/ d2 L l3 l1/l2 Catégorie Sous-catégorie k3
300404 Branch 45° - 40 40 135 45 90 Raccords Branches 25
300504 Branch 45° - 50 40 165 55 110 Raccords Branches 40
300505 Branch 45° - 50 50 165 55 110 Raccords Branches 35
300604 Branch 45° - 63 40 195 65 130 Raccords Branches 45
300605 Branch 45° - 63 50 195 65 130 Raccords Branches 50
300606 Branch 45° - 63 63 195 65 130 Raccords Branches 40
300656 Branch 45° - 63 56 195 65 130 Raccords Branches 45
300704 Branch 45° - 75 40 210 70 140 Raccords Branches 65
300705 Branch 45° - 75 50 210 70 140 Raccords Branches 70
300706 Branch 45° - 75 63 210 70 140 Raccords Branches 45
300707 Branch 45° - 75 75 210 70 140 Raccords Branches 40
300756 Branch 45° - 75 56 210 70 140 Raccords Branches 55
300904 Branch 45° - 90 40 240 80 160 Raccords Branches 75
300905 Branch 45° - 90 50 240 80 160 Raccords Branches 80
300906 Branch 45° - 90 63 240 80 160 Raccords Branches 70
300907 Branch 45° - 90 75 240 80 160 Raccords Branches 65
300909 Branch 45° - 90 90 240 80 160 Raccords Branches 50
300956 Branch 45° - 90 56 240 80 160 Raccords Branches 75
301104 Branch 45° - 110 40 270 90 180 Raccords Branches 95
301105 Branch 45° - 110 50 270 90 180 Raccords Branches 95
301106 Branch 45° - 110 63 270 90 180 Raccords Branches 85
301107 Branch 45° - 110 75 270 90 180 Raccords Branches 75
301109 Branch 45° - 110 90 270 90 180 Raccords Branches 65
301111 Branch 45° - 110 110 270 90 180 Raccords Branches 55
301156 Branch 45° - 110 56 270 90 180 Raccords Branches 90
301205 Branch 45° - 125 50 300 100 200 Raccords Branches 75
301206 Branch 45° - 125 63 300 100 200 Raccords Branches 105
301207 Branch 45° - 125 75 300 100 200 Raccords Branches 95
301209 Branch 45° - 125 90 300 100 200 Raccords Branches 30
301211 Branch 45° - 125 110 300 100 200 Raccords Branches 25
301212 Branch 45° - 125 125 300 100 200 Raccords Branches 20
301256 Branch 45° - 125 56 300 100 200 Raccords Branches 45
301605 Branch 45° - 160 50 375 125 250 Raccords Branches 65
301606 Branch 45° - 160 63 375 125 250 Raccords Branches 65
301607 Branch 45° - 160 75 375 125 250 Raccords Branches 65
301609 Branch 45° - 160 90 375 125 250 Raccords Branches 55
301611 Branch 45° - 160 110 375 125 250 Raccords Branches 45
301612 Branch 45° - 160 125 375 125 250 Raccords Branches 40
301616 Branch 45° - 160 160 375 125 250 Raccords Branches 25
301656 Branch 45° - 160 56 375 125 250 Raccords Branches 65
302005 Branch 45° - 200 50 540 180 360 Raccords Branches 175
302006 Branch 45° - 200 63 540 180 360 Raccords Branches 175
302007 Branch 45° - 200 75 540 180 360 Raccords Branches 175
302009 Branch 45° - 200 90 540 180 360 Raccords Branches 165
302011 Branch 45° - 200 110 540 180 360 Raccords Branches 150
302012 Branch 45° - 200 125 540 180 360 Raccords Branches 140
302016 Branch 45° - 200 160 540 180 360 Raccords Branches 115
302020 Branch 45° - 200 200 555 180 375 Raccords Branches 95
302056 Branch 45° - 200 56 540 180 360 Raccords Branches 175
302507 Branch 45° - 250 75 660 220 440 Raccords Branches 235
302509 Branch 45° - 250 90 660 220 440 Raccords Branches 225
302511 Branch 45° - 250 110 660 220 440 Raccords Branches 215
302512 Branch 45° - 250 125 660 220 440 Raccords Branches 205
302516 Branch 45° - 250 160 660 220 440 Raccords Branches 180
302520 Branch 45° - 250 200 660 220 440 Raccords Branches 150
302525 Branch 45° - 250 250 900 300 600 Raccords Branches 250
303107 Branch 45° - 315 75 840 280 560 Raccords Branches 325
303109 Branch 45° - 315 90 840 280 560 Raccords Branches 315
303111 Branch 45° - 315 110 840 280 560 Raccords Branches 305
303112 Branch 45° - 315 125 840 280 560 Raccords Branches 290
303116 Branch 45° - 315 160 840 280 560 Raccords Branches 270
303120 Branch 45° - 315 200 840 280 560 Raccords Branches 240
303125 Branch 45° - 315 250 840 280 560 Raccords Branches 205
303131 Branch 45° - 315 315 950 340 610 Raccords Branches 280
305604 Branch 45° - 56 40 180 60 120 Raccords Branches 60
305605 Branch 45° - 56 50 180 60 120 Raccords Branches 40
305656 Branch 45° - 56 56 180 60 120 Raccords Branches 40
