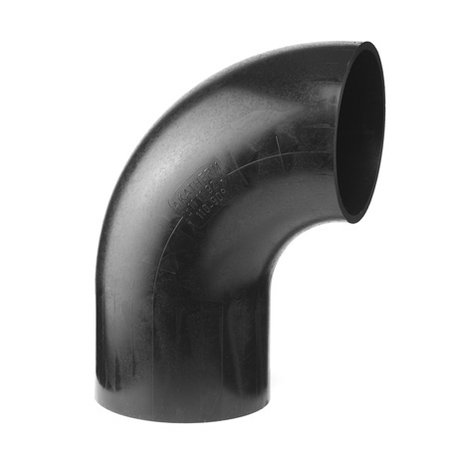

Bend 90° with long side

Electrofusable at one side.
Bend 90° with long side
Référence Nom info-bulle d1 s Kg l1 l2 Catégorie Sous-catégorie r
110492 Bend 90° with long side - 40 40 0,044 93 43 Raccords Coudes 40
110592 Bend 90° with long side - 50 50 0,072 103 53 Raccords Coudes 50
110692 Bend 90° with long side - 63 65 0,102 130 66 Raccords Coudes 65
110792 Bend 90° with long side - 75 75 0,136 140 78 Raccords Coudes 75
110992 Bend 90° with long side - 90 90 0,22 153 93 Raccords Coudes 90
111196 Bend 90° with long side - 110 100 0,3759 270 100 Raccords Coudes 100
111292 Bend 90° with long side - 125 125 0,52 190 128 Raccords Coudes 125
115692 Bend 90° with long side - 56 56 0,084 120 59 Raccords Coudes 56
